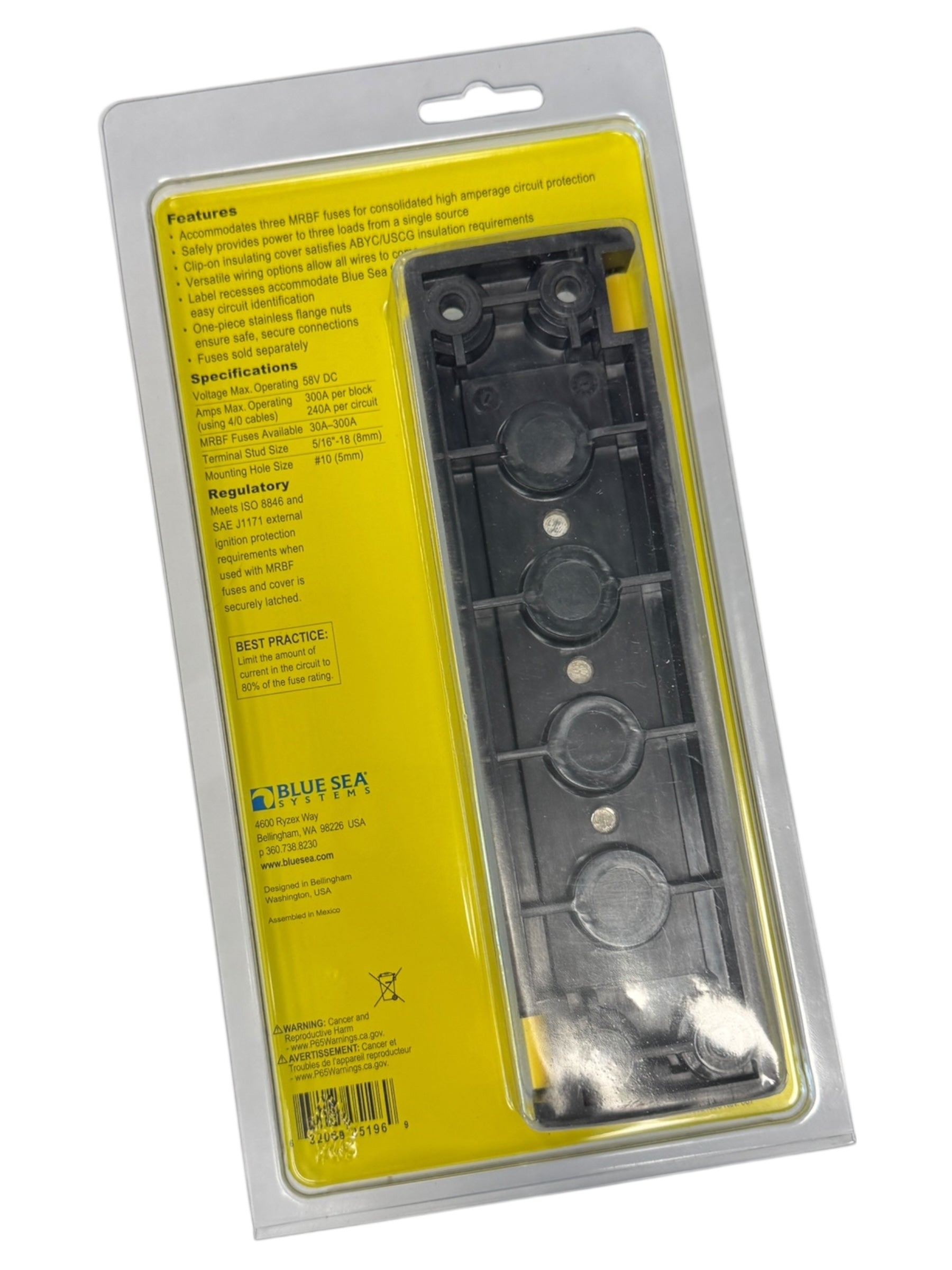

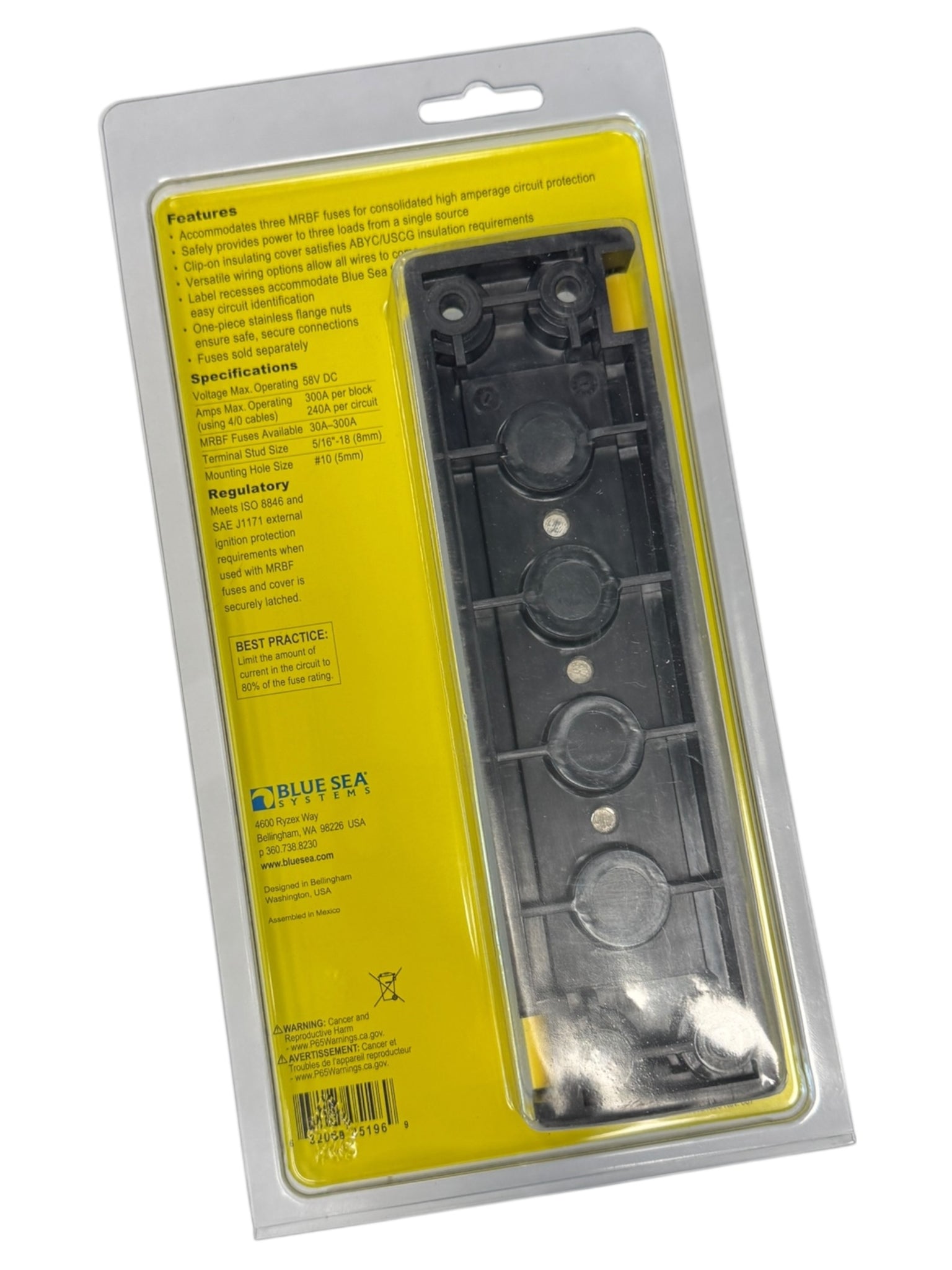

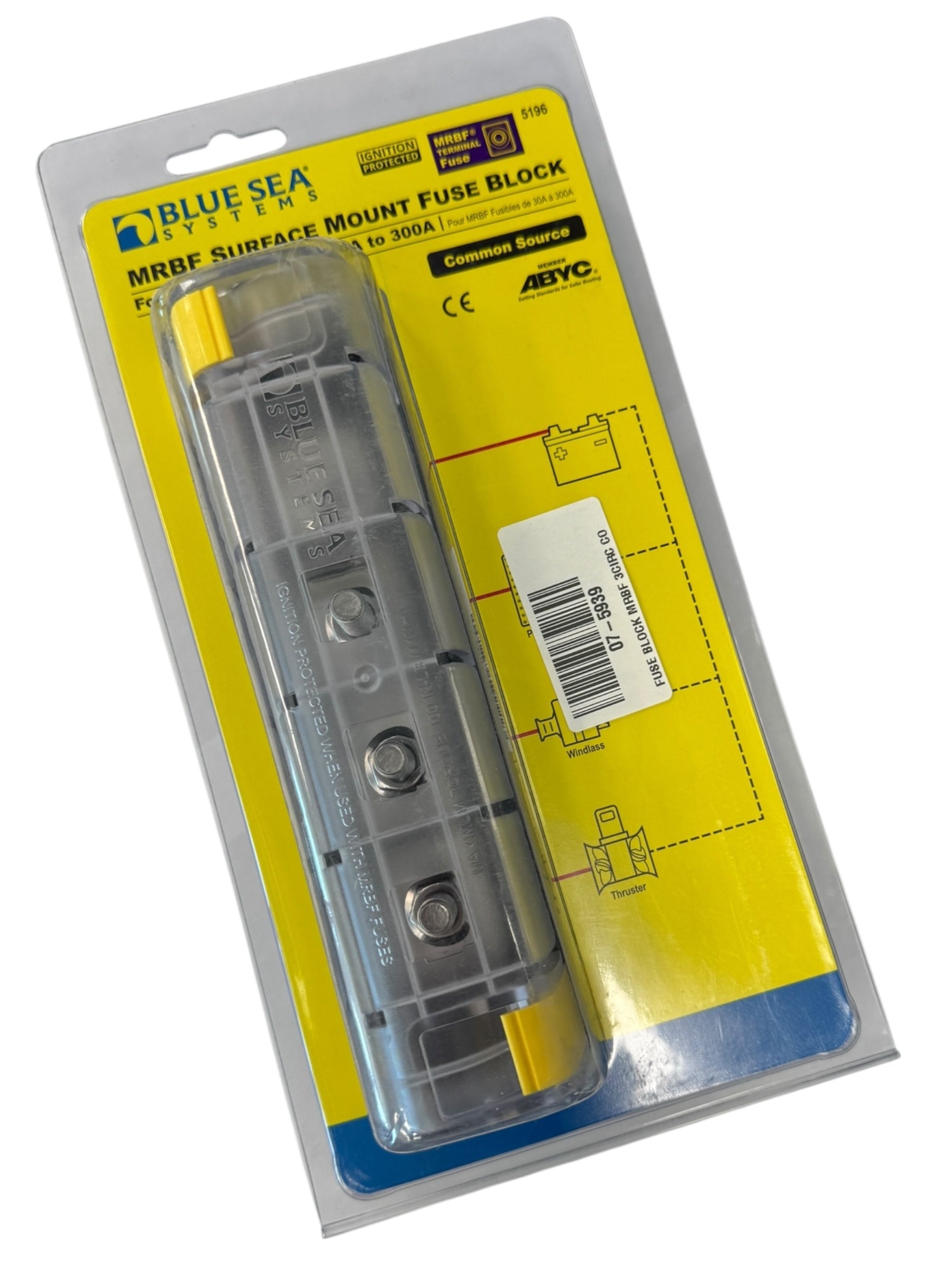

Ensure reliable circuit protection for your DC electrical system with the Blue Sea Systems MRBF Surface Mount Fuse Block (5196). Designed to accommodate up to three MRBF fuses, this high-quality fuse block consolidates protection for multiple loads from a single source, making it ideal for marine, RV, and off-grid solar applications.

Built to ABYC/USCG standards, the MRBF Fuse Block is ignition protected and perfect for safely managing high amperage connections. Its compact design allows for flexible installation in tight spaces, while the clip-on insulating cover provides added safety.

Key Features:

• Accommodates up to 3 MRBF fuses for consolidated high amperage protection

• Common source design for efficient power distribution

• Ignition protected – safe for installation in engine rooms or confined spaces

• Accepts fuses rated from 30A to 300A (sold separately)

• Stainless steel flange nuts ensure secure, vibration-resistant connections

• Meets ABYC/USCG requirements

Specifications:

• Model: 5196

• Maximum Operating Voltage: 58V DC

• Max Amperage per Block: 300A

• Max Amperage per Circuit: 240A

• Terminal Stud Size: 5/16" – 18 (8mm)

• Mounting Hole Size: #10 (5mm)

• Dimensions: 4.4" x 1.3" x 2.1"

Upgrade your DC electrical setup with the Blue Sea Systems MRBF Fuse Block, trusted by professionals for its durability, safety, and compact performance.
